Principle of Treatment:
Utilizing the explosive effect of the ND:YAG LASER,
the laser permeate the epidermis into the dermis and takes effect on
pigment mass and is absorbed by pigment. Since the laser pulses is
extremely short in nanosecond and comes with super high energy, the
pigment mass would swell quickly and break into small pieces, which
will be eliminated through metabolism. In this case, the pigments
become lighter gradually and finally disappear.
Application:
A. For endogenous pigment: nevus of Ota, coffee spot, age pigment, freckle etc removal.
B. For exogenous pigment: tattoo, eyeliner and eyebrow removal.
C. Skin whitening.
Treatment Hand Pieces available:
1, 1064nm handle: Remove and lighten speckles, age-spots, sun-burn spots and tattoo in black, blue colors
2, 532nm handle:Remove and lighten red and brown colors tattoo
Traits and advantages:
1, Safe and efficient treatment:
Normal tissues
under the skin barely absorb the Laser energy at the wave lengths of
1064nm and 532nm and the Laser would not damage normal skin and
no-scars would be left. Automatic protect device of water-level and
water-temperature makes treatment safe, efficient.
2, Portable and easy operation:
User-friendly LCD touch-screen makes operation easy, its collimator makes the treatment safe, accurate and efficient.
3, Fashionable design
Specifications:

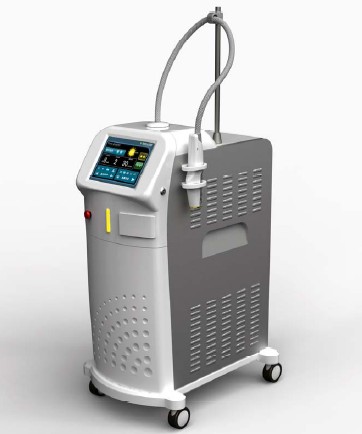

Laser type: Q-Switch Nd:YAG
solid laser Wavelength:1064nm /532 nm
Output energy: 300-500Mj adjustable
Spot: 1-6mm adjustable
Pulse duration: 10ns
Frequency: 1,2,3,4,5HZ
Cooling System: Built-in water cooled
Net weight: 18Kg
Power: AC220Vą10%, 50Hz; AC110Vą10%, 60Hz
Additional resources:
watch the machine demo video online.
